Description
Product details

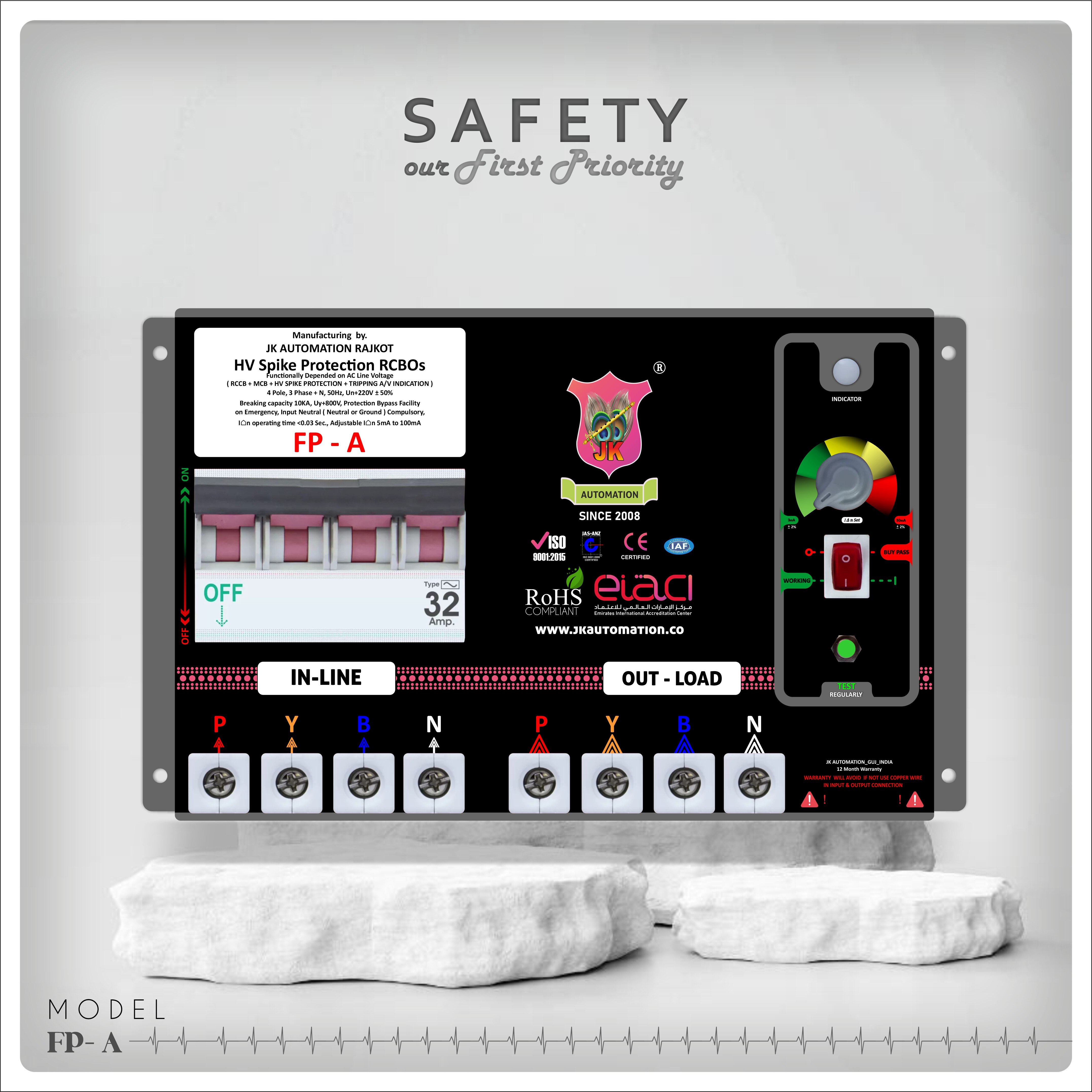

FP A WITH O/V PROTECTION 1 YEAR WARRANTY Product ID : FP A 40 Type: RCBOS (RCCB+MCB) Three Phase, 4-Pole (3:Phase, 1:Neutral) Rated breaking capacity :10kA (Class 3 ISI MCB Designed by German Technology), 220V AC, 50 Hz, Rated Residual Operating Time : 0.03S, Adjustable O/v Cut-Off: 250V to 300V +/-2% With Respect to Neutral. Adjustable IΔn 5mA, 10mA, 20mA, 30mA, 50mA, 100mA Key Features of JK AUTOMATION ’ RCBOs: Comprehensive Protection: Combines the functionalities of Residual Current Circuit Breakers (RCCBs) and Miniature Circuit Breakers (MCBs) to protect against both earth leakage and overcurrent scenarios, including overloads and short circuits. High Sensitivity Options: Available in multiple leakage sensitivity settings such as 5mA, 10mA, 25mA, 50mA and 100mA allowing for tailored protection based on specific requirements. Robust Construction: Manufactured using corrosion-proof cabinet, flame-retardant PBT material connector, ensuring durability and safety in various environmental conditions. User-Friendly Features: Equipped with a time interval siren with a timer up to 5 minutes, tripping LED indication, and an emergency bypass facility for maintenance purposes. (All Protection not Working in By-pass Mode) Technical Specifications: Number of Poles: 4 (ISI MCB designed with German technology) Rated Breaking Capacity: 10kA at 220V AC, 50Hz Operating Voltage Range: 100-290V AC Residual Operating Time: 0.1s Degree of Protection: IP20 Tripping Type: Instantaneous Mounting Options: Screw mounting Connector Material: Flame-retardant PBT These RCBOs are suitable for both residential and commercial applications, ensuring the safety of electrical installations by promptly disconnecting circuits during fault conditions. JK AUTOMATION ’ commitment to quality and safety makes their RCBOs a reliable choice for protecting electrical systems.
